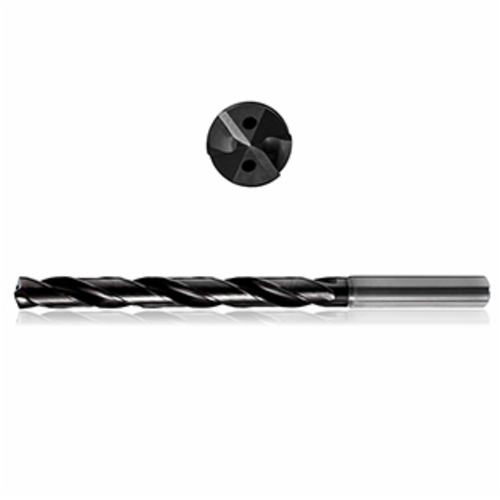

DXC0512400T9
| Length Group | 5xD | Cutting Edge Material | Carbide |
| Coating | TiAICN | Tool Type | Solid Carbide Drill |
| Applicable Material | | Stainless Steel | Steel | Super-Alloys / Titanium | | Grade | H5009 Varianta Supral |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Usable Length (LU) | 58 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 77 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 124 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | DOUBLE-MARGIN DRILL |
| Shank Length (LS) | 38 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shank Standard | h6 |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Weight
0.638
